Solar PV Cables (PV1-F / PV3-F)
Specialized solar PV cables designed to withstand ultraviolet radiation, temperature fluctuations, and ozone exposure, providing a long service life typically ≥ 25 years according to EN 50618. These cables feature high-quality flexible copper conductors, UV-resistant insulation with optional Low Smoke Halogen-Free (LSHF) compounds, and a durable UV-protected outer sheath, ensuring stable and long-term performance in exposed solar environments.
Specialized solar PV cables designed to withstand ultraviolet radiation, temperature fluctuations, and ozone exposure, providing a long service life typically ≥ 25 years according to EN 50618. These cables feature high-quality flexible copper conductors, UV-resistant insulation with optional Low Smoke Halogen-Free (LSHF) compounds, and a durable UV-protected outer sheath, ensuring stable and long-term performance in exposed solar environments.
| Property |
Typical Value |
|---|---|
| Conductor |
Flexible copper strands |
| Conductor Purity |
High |
| Insulation |
UV-resistant PVC / LSHF optional |
| Outer Sheath |
UV-resistant, weatherproof |
| Common Cross Sections |
1.5 — 6.0 mm², some designs up to 16 mm² |
| Rated Voltage |
Up to 1000V / 1500V DC depending on project |
| Insulation Colors |
Multi-color for core identification |
| Service Life |
≥ 25 years according to EN 50618 |
| Additional Properties |
UV-resistant, moisture-resistant, optional halogen-free |

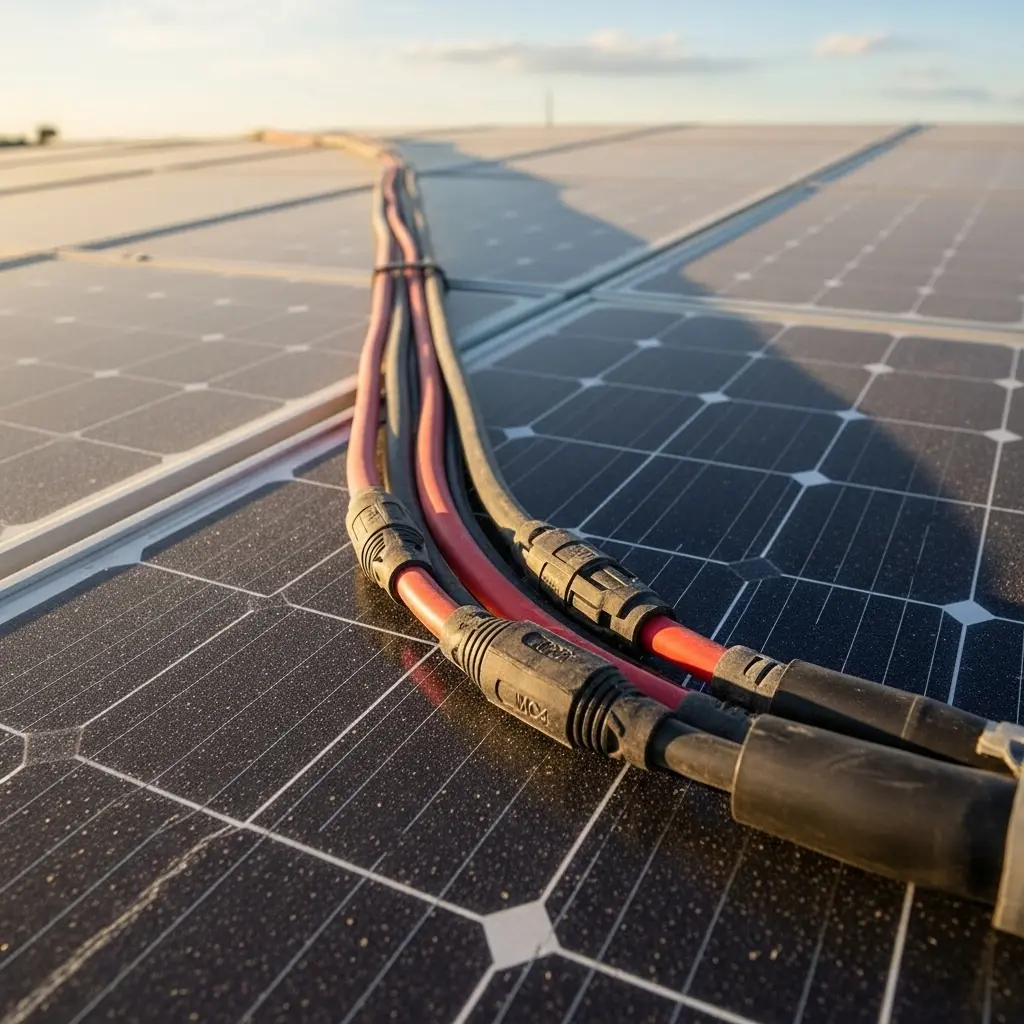

- Connecting solar panels to controllers or inverters.
- String connections in solar fields.
- Residential and industrial solar PV systems.
- EN 50618: Standard for PV1-F / PV3-F solar cables.
- TUV approvals for quality and safety.
- Aging tests under sunlight, temperature and moisture resistance.
- Quality assurance according to Sun Solar Cable+1 standards.
