Telecom & Data Cables (Ethernet & Fiber Optic)

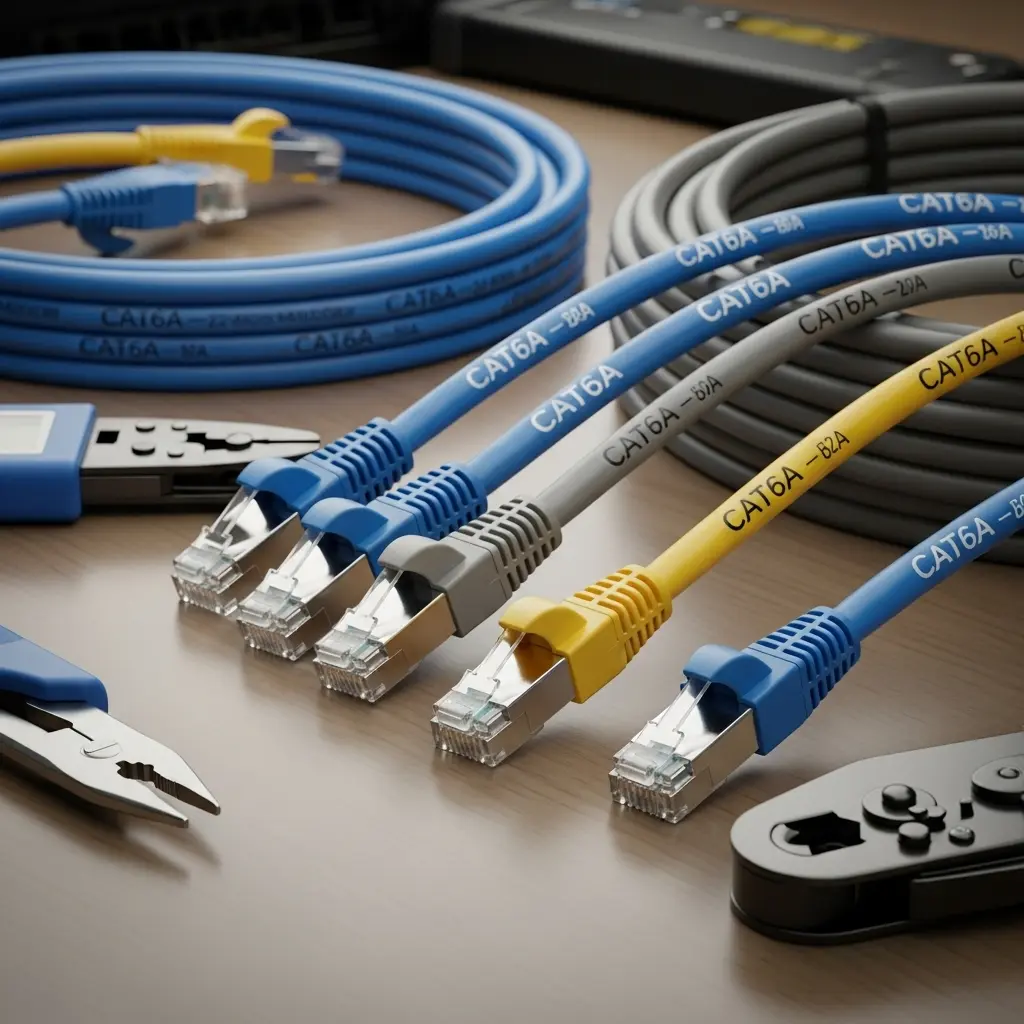

This range includes copper network cables (Cat5e, Cat6, Cat6A) and fiber optic cables (Single-mode and Multi-mode) designed for high-speed, reliable data transmission. Copper cables provide standard performance up to 1 Gbps (Cat5e) or 10 Gbps (Cat6A), while fiber optic cables support long or short distances with low insertion loss and high bandwidth capacity. The cables are designed for tensile resistance, flexible installation, and external protection when used outdoors or in industrial environments.
This range includes copper network cables (Cat5e, Cat6, Cat6A) and fiber optic cables (Single-mode and Multi-mode) designed for high-speed, reliable data transmission. Copper cables provide standard performance up to 1 Gbps (Cat5e) or 10 Gbps (Cat6A), while fiber optic cables support long or short distances with low insertion loss and high bandwidth capacity. The cables are designed for tensile resistance, flexible installation, and external protection when used outdoors or in industrial environments.
| Property |
Typical Value |
|---|---|
| Number of Cores |
2 — 8 cores for fiber, 4 pairs for copper |
| Copper |
Cat5e / Cat6 / Cat6A, PVC / LSZH insulation |
| Fiber Optic |
Single-mode (OS1/OS2), Multi-mode (OM1..OM5) |
| Speed / Bandwidth |
1 Gbps — 10 Gbps depending on type |
| Additional Properties |
Low insertion loss (dB/km), tensile resistance, flexible installation |
| Outer Sheath |
PVC / LSZH, armoured or non-armoured for outdoor use |
- Office and commercial building networks.
- Data centers and storage area networks (SAN).
- Inter-site connectivity and broadband communications.
- ISO/IEC 11801, EN 50173 for network cables.
- ITU-T G.652 / G.657 for fiber optic cables.
- IEC for cable standards.
- Testing for insertion loss, tensile strength, bandwidth capacity.
- Quality assurance according to Prysmian Asean standards.
